Firmware Flashing/ Walkthrough Video:
https://youtu.be/DyJD5U345So
Here is a better picture of the pins we are connecting to using the BDM frame interface:

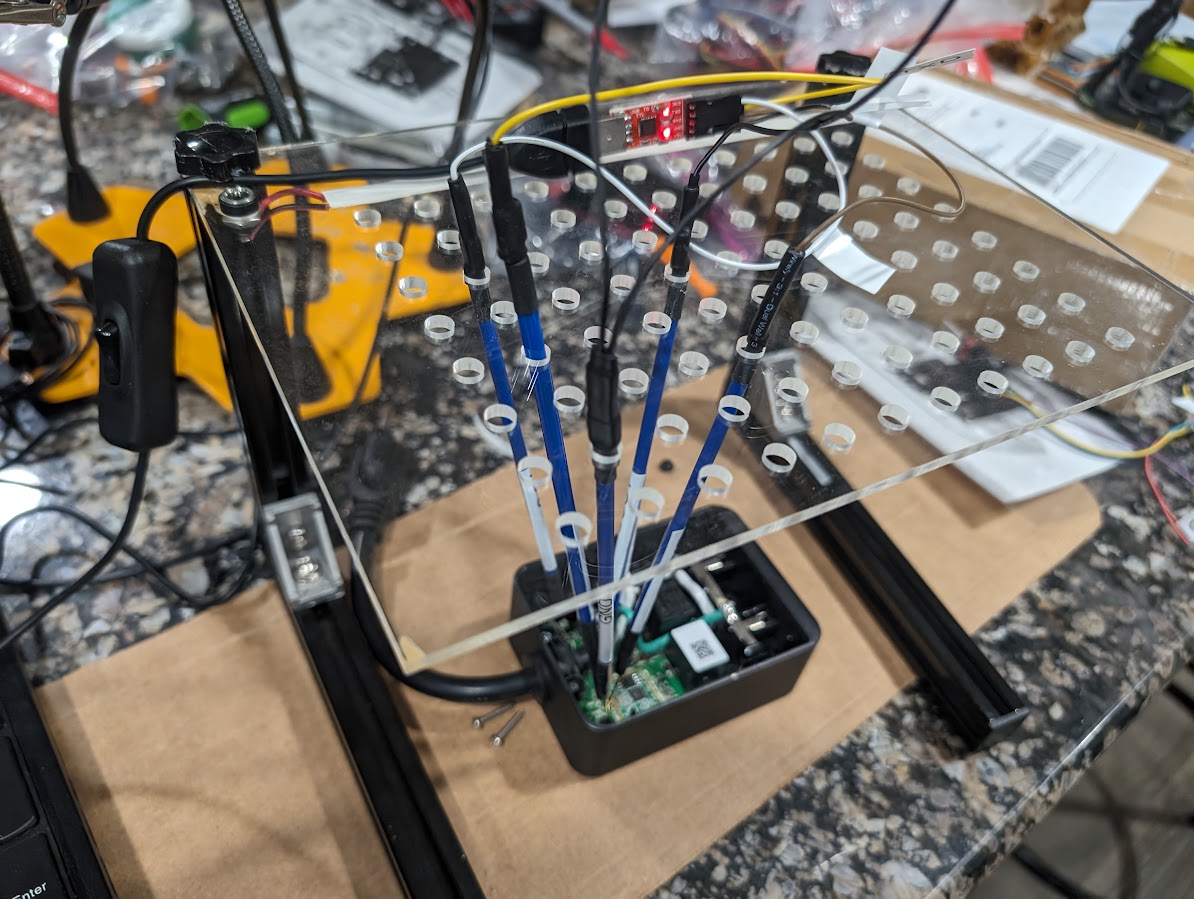

and here is an image of the overall setup with the BDM frame:
BDM Frame on Amazon: https://www.amazon.com/dp/B09BJJ1RLC
— they are cheaper on aliexpress, etc
Tasmota Template:
{“NAME”:”Wyze Outdoor Plug”,”GPIO”:[0,0,0,0,0,576,0,0,0,0,0,224,321,7713,7712,320,0,0,0,0,0,2624,2656,2720,0,0,0,0,225,0,4704,0,0,0,0,0],”FLAG”:0,”BASE”:1}
After the Wyze plug reboots with its new template, enter this command at a console window as well as the video shows. This command will tell your smartplug to broadcast a wireless network if it can’t find any networks it is configured to join already.
wificonfig 7
Extensive information from Digiblur here:
https://digiblur.com/wiki/devices/plugs/wyze_plug_outdoor_wlppo1/
To calibrate the power utilization statistics to be more correct, follow this process:
https://tasmota.github.io/docs/Power-Monitoring-Calibration/
